PRODUCTS 100% VIRGIN PTFE
OUTSTANDING PROPERTIES
EXCELLENT RESISTANCE TO CHEMICAL CORROSION
EXCELLENT SOFT SEALING MATERIAL
HIGH BREAKDOWN VOLTAGE / DIELECTRIC STRENGTH
BIOSAFE AND INERT
LOW STATIC AND DYNAMIC FRICTION COEFFICIENT
HIGHLY NON STICK
HIGH WEATHERING RESISTANCE
HIGH TEMPERATURE RESISTANCE
DELIVERY PROGRAM, all dimensions in mm
EXTRUDED RODS |
1 TO 5 Dia X Long Spools 6 TO 25 Dia X 1000 OR 2000 L 30 TO 200 Dia X 1000 L |
PRESSED RODS |
Available in the above sizes in 300 L |

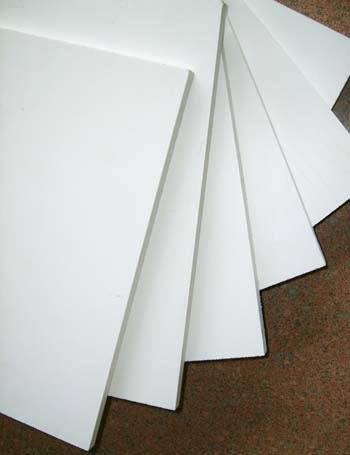

PRESSED SHEETS |
4 TO 100 Thick X 10002 / 12002 /15002 4 TO 100 Thick X 1000 X 2000 – Special Production with MOQ |
SKIVED SHEETS |
0.2 TO 6.O Thick X 1000 / 1200 / 1500 / 2000 Wide X Long Rolls |
EXTRUDED HOLLOWS |
20 OD X 10 ID TO 150 OD X 75 ID , 1000 / 2000 L |
PRESSED HOLLOWS |
175 OD X 75 ID TO 1200 OD X 1050 ID , 100 / 200 / 300 L |
ONE-SIDE SODIUM ETCHED PTFE SHEETS |
Available in all sizes |
CUSTOM SIZES |
Rods, Sheets, Hollows available on Request with MOQ |
MICROMACHINED CIRCULAR PARTS |
0.5 TO 5 Dia |

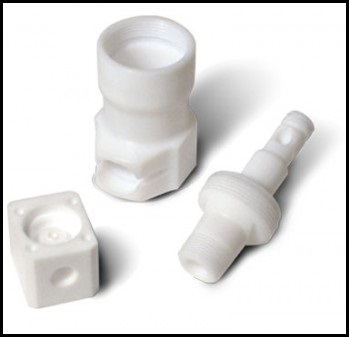

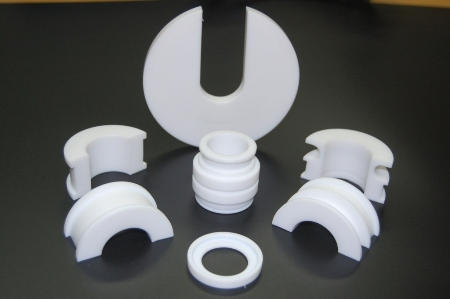

MACHINED CIRCULAR PARTS |
5 TO 1200 Dia |
MACHINED SQUARE / RECTANGULAR PARTS |
5 X 5 TO 1000 X 2000 / 1500 X 1500 |
TECHNICAL DATA SHEET
PROPERTY |
STANDARD |
VALUE |
|---|---|---|
Density |
ASTM D792 |
2.16 - 2.20 g/cm3 |
Water Absorption |
ASTM D570 |
<0.01 % |
Tensile strength |
ASTM D638 |
≥200 kg/cm2 |
Elongation |
ASTM D638 |
≥300 % |
Impact strength, Izod,23°C |
ASTM D256 |
1.6 J/cm |
Hardness |
ASTM 785 |
50 - 55 Shore D |
Compressive strength at 1% def. |
ASTM D695 |
40– 50 kg/cm2 |
Thermal conductivity |
ASTM D2214 |
0.2 W/m. K |
Coefficient of Thermal Expansion, 25 to 100 °C |
ASTM E831 |
16 x 1-5°C-1 |
Volume resistivity, at 50% RH |
ASTM D257 |
≥1018Ohm cm |
Surface resistivity , at 50% RH |
ASTM D257 |
≥1017Ohm |
Dielectric strength |
ASTM D149 |
≥55 KV/mm |
Safe Operating temperatures |
- |
- 50 to 200°C(biological, pharma, food applications) - 50 to 260°C(Non-bio/food/ pharma applications) |
Coefficient of friction, static |
ASTM D3028 |
≤0.09 |
Coefficient of friction, dynamic |
ASTM D3028 |
≤0.05 |
Moisture / solvent absorption |
- |
Negligible |
Combustibility |
- |
Non-combustible |
Weather resistance |
- |
Excellent |
Chemical resistance |
- |
Excellent, except for highly fluorinating agents |
